Trackwork Begins

Hi all,

Trackwork on the as yet un-named layout has begun.....I have stated elsewhere on this blog i am sure....but to confirm...Peco code 75 track & points will provide the mainstay of trackage.

I have decided to concentrate construction on the station, yard area & environs  of a location i have named  "Fish River"......No this is not based on the real Fish River located between Goulburn & Gunning on the main south....I just liked the name.

Apart from being a main line station, Fish River will host the junction with a yet to be named branchline.

I guess there are elements of the real Galong & associated Boorowa branch  in the junction arrangement ie. slips being used.  I decided to use double slips as a way of saving space...

It must be obvious by now that this layout is evolving as it goes.....I have got a mud map drawn up....but as time goes by i keep modifying & or changing things.....

To put things into some perspective....please peruse the following plans & photos....The plan will be updated when in an "As Built" state.

The main line & yard area of Fish River is fairly obvious although some mods to trackwork have already occurred....

The branch can be seen leaving the main line crossing the bridge & entering what will be the staging area ???... travelling parallel with the main running lines crossing the doorway ( on the right ) travelling parallel & dropping in altitude with the baseboard opposite Fish River...looping under that bench & terminating in thin air between the existing baseboards....This will eventually be an island containing the branch may well end up as a fairly lengthy island & end adjacent to the doorway on the right.

Apart from Fish River & the Branch...i am  yet to decide how the rest of the layout will operate & as such there is no plan at this stage..

Incomplete track diagram of the layout.

Some pertinent dimensions..
Layout area 12m x 3.8m
700mm bench width on left ( Fish River )
500mm bench width on right ( open to modification )
Layout Height: 1300mm

Fish River Station looking in the UP direction towards the river & associated twin bridges...
Down Platform & station buildings on the right & Henderson's Flour Mill in the distance ( right )....located on the river bank.
The siding adjacent to the up main will now terminate pretty much where it is and will form a dock siding....Yes i forgot that Fish River will need an up platform & associated infrastructure....Doh

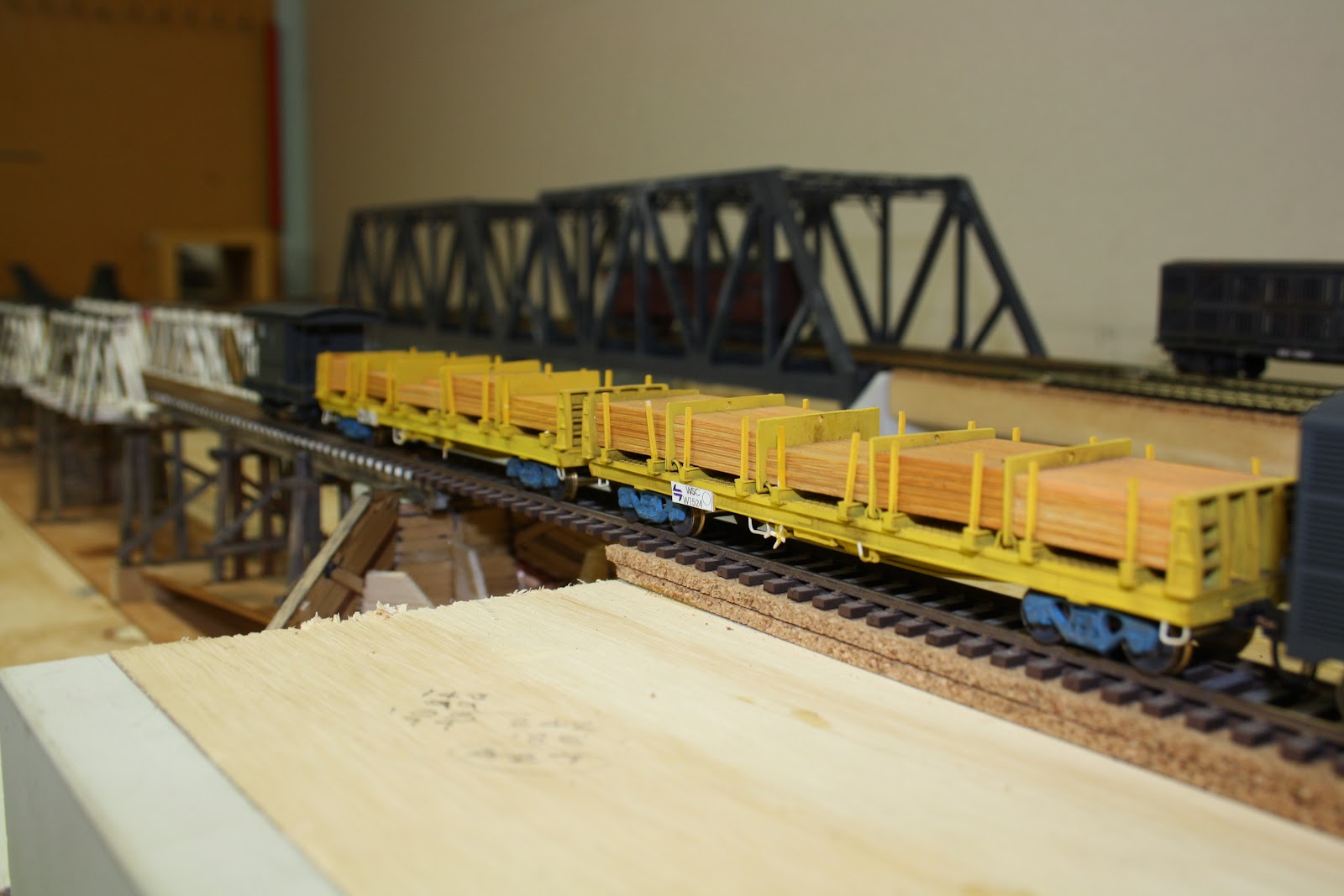

View looking in the general UP direction ( down i guess for the branch ) showing the Fish River Bridges.....In the foreground is the Branch Line....while the up & down mains share the bridge in the background.  Also of note are the future tunnel portals ( just discernable ) in the background wall which will act as scene separators

A rather "depth of field challenged" shot of 4425 ( now Tsunami fitted ) & train coming off the branch approaching the main lines while a 49 class & train ( wrong road ) look on.
